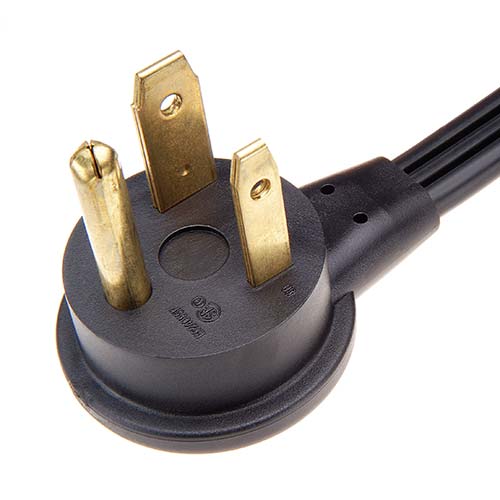

NEMA Plugs and Receptacles
Volex is a leading manufacturer and supplier of power cords and related products such as electrical plugs and receptacles made to standards set by the National Electrical Manufacturers Association (NEMA)
Volex NEMA Plugs and Receptacle products are sold to manufacturers for a broad range of electrical and electronic devices, equipment, appliances, and many other applications.
Whether the end-use requires frequent plugging and unplugging, or plug and forget, Volex will have the right product solution to meet design requirements.
Volex offers the following NEMA plugs and receptacles products portfolio below.
They can also be called: NEMA non-locking plugs, NEMA non-locking receptacles, high ampere plugs, high current plugs, UL 2 pin plugs, UL 3 pin plugs, UL 2 pole plugs, UL 3 pole plugs, North American 2 pin plugs, and North American 3 pin plugs.
What are NEMA Plugs and Receptacles?
North America differs from other regions when it comes to the number of different electrical plug/receptacle styles. Each plug and receptacle of different ratings is assigned with varying pin orientations and configurations to prevent the use of low current plugs on high ampere application.
Electrical plugs and receptacles in North and Latin America, Japan and Taiwan follow the NEMA standards. They are grouped into locking and non-locking, where the locking versions have curved prongs that lock into the receptacle when twisted clockwise, and disengage on counter clockwise. Non-locking plug versions, on the other hand, are inserted to the mating receptacles or wall sockets with the usual straight push and pull motions.
NEMA Plugs and Receptacles
Technical Information
Volex NEMA plugs and receptacles are offered with many different options and customisations. The chart below illustrates the different NEMA non-locking plug styles with most popular rating available in Volex’s portfolio.
| 2 Pole 2 Wire | 2 Pole 3 Wire Grounding | 3 Pole 3 Wire | 3 Pole 4 Wire Grounding | 4 Wire | ||||||
| 125V | 250V | 125V | 250V | 277V | 125/250V | 30 250V | 125/250V | 30 250V | 30 120/208V | |
| 15 AMP Receptacle Plug |
 |
 |
 |
 |
 |
 |
 |
 |
||
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| 20 AMP Receptacle Plug |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| 30 AMP Receptacle Plug |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
| 50 AMP Receptacle Plug |
 |
 |
 |
 |
 |
 |
 |
 |
||
 |
 |
 |
 |
 |
 |
 |
 |
|||
| 60 AMP Receptacle Plug |
 |
 |
 |
|||||||
 |
 |
 |
||||||||
Applications / Markets for NEMA Plugs and Receptacles
NEMA plugs and receptacles from Volex are used in a wide variety of applications and markets. Examples include:
Business and IT Peripherals
- Desktops
- Monitors
- Laptops and Notebooks
- Point of Sale Systems
- Printers
- Tablets
Consumer Electronics
- Game Consoles
- Projectors
- Sound Systems
- Televisions
DIY and other Equipment and Appliances
- Extension Cords
- Power Tools
- Pressure Washers
- Replacement Power Cords
- Sewing Machines
- Water and Air Pumps
Domestic Appliances
- Air Conditioners
- Dryers
- Microwave Ovens
- Refrigerators and Freezers
- Steam Irons
- Vacuum Cleaners
- Washing Machines
Healthcare
- Clinical Diagnostics
- Imaging
- Medical Therapy Systems
- Patient Care Systems
- Patient Monitoring
- Surgical Systems
Personal Care
- Hair Curlers and Dryers
- Massagers
NEMA Plugs and Receptacles
Features Include
- UL, cUL and CSA approvals that guarantee safety standard compliance
- Lower minimum ordering quantity and shorter lead-time as compared to assembly-type counterparts
- Matched with right sized conductors made with pure virgin copper
- Custom body to match end-product profile to promote compatibility with existing appliance or added feature such as the cable grip
- Special marking or logo for brand identity and customised colours
- Enhanced reliability to withstand harsh environment conditions
- Locking features for secured power
- Compact and slim profiles to address space limitations and reduce carbon footprint
Why Choose Volex for NEMA Plugs and Receptacles?
Volex customers of NEMA electrical plugs and receptacles benefit from strong technical expertise and global manufacturing and delivery. The Volex global factory footprint, which includes tariff-free manufacturing sites, an efficient global supply chain, and logistics support enables reduced product lead time and efficient cost management. Volex engineering teams can customise NEMA plugs and receptacle solutions to a customer’s specific requirements and provide quick-turn custom design samples supported by skilled local sales and field applications engineering (FAE) teams. Dynamic design and development capabilities support Volex’ diverse product portfolios. Rigid reliability tests, and 100% electrical tests, ensure total product performance. Volex always strives to fulfil customer expectations in the best way possible.
