Plug Connectors, Plug Receptacles, IEC Connectors
Volex is a leading manufacturer and supplier of power cord and jumper cord products which may consists of plug connectors, plug receptacles, and International Electrotechnical Commission (IEC) connectors
Volex plug connector, plug receptacle, jumper cord, AC inlet, AC outlet, and IEC connector products are sold to manufacturers for a broad range of electrical and electronic devices, equipment, appliances, and many other applications.
Volex offers the following plug connectors, plug receptacles, IEC connector products portfolio below:
They can also be called: Mickey Mouse connectors, clover leaf connectors, figure 8 connectors, shot gun connectors, high amperage cable connectors, high ampere rated connectors, cold connectors, hot connectors, C14 plug connectors, and C20 plug connectors.
- AC Inlets
- AC Outlets

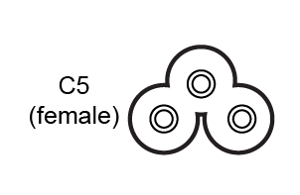

- C5 Connectors / IEC C5 Connector

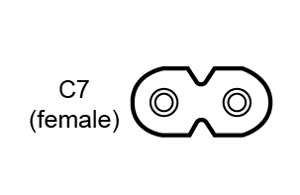

- C7 Connector / IEC C7 Connector

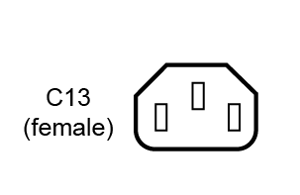

- C13 Connector / IEC C13 Connector

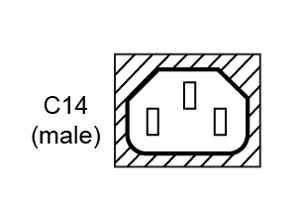

- C14 Plug Connector / IEC C14 Plug Connector

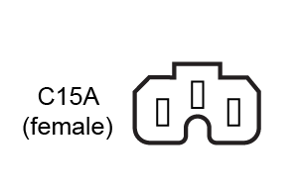

- C15 Connector / IEC C15 Connector

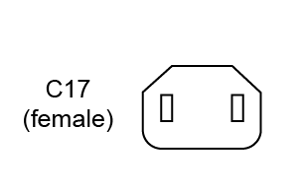

- C17 Connector / IEC C17 Connector
- C19 Connector / IEC C19 Connector

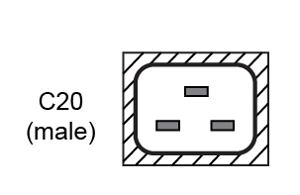

- C20 Plug Connector / IEC C20 Plug Connector
- C21 Connector / IEC C21 Connector
- IEC Connectors
- Plug Connectors
- Plug Receptacles

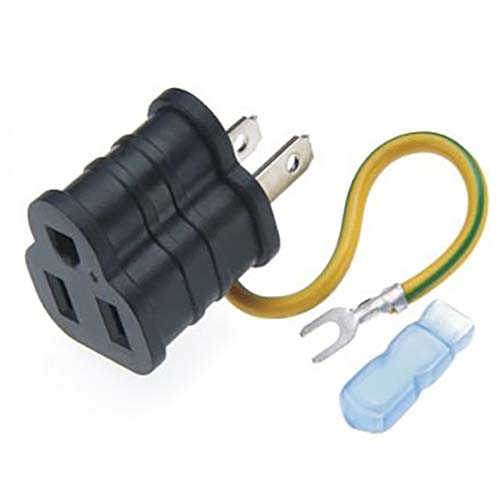

What are Plug Connectors, Plug Receptacles, IEC Connectors?
Plug connectors or plug receptacles are like plugs, except contacts are surrounded by a shroud. Countries world-wide only follow the IEC standards.
Also, unlike 2 pin and 3 pin plugs which are usually mated to a wall socket, plug connectors and plug receptacles are plugged indirectly to a power source such as the back of a desktop or UPS (uninterruptible power supply) and are commonly part of a jumper cord.
On the other hand, IEC connectors are mated to equipment or an appliance which ensures that specified ampere ratings and required temperature ratings are satisfied.
Plug Connectors, Plug Receptacles, IEC Connectors
Technical Information
Most connectors used around the world are covered by EN60335-1 (IEC 335-1) standards which dictates the configuration, current, and temperature rating paired with the required cables. The table below shows the approved Volex connectors:
| Rated Current of Appliance Coupler (A) | Class of Equipment | Maximum Pin Temperature of Appliance Inlet | Appliance Coupler Number of Standard Sheet | Approved | AWG | ||
|---|---|---|---|---|---|---|---|
| European Cable Type | Cross-Sectional Area (mm²) | UL Cable Type | |||||
| 2.5 | I | 70 °C |  |
H03VV-F | 0.75 | SPT-2 or SVT | 18 |
| 2.5 | II | 70 °C |  |
H03VV-F or H03VVH2-F | 0.5, 0.75 (a) | SPT-1 or SPT-2 | 18 |
| 10 | I | 70 °C |  |
H05VV-F, Screened | 0.75, 1.0 (b) | SVT or SJT | 18, 16, 14 |
| 10 | I | 70 °C |  |
H05VV-F | 0.75, 1.0 (b) | SVT or SJT | 18, 16, 14 |
| 10 | I | 120 °C | |
H05RR-F or H03RT-H | 0.75, 1.0 (b) | SVT or SJT or HPN | 18, 16, 14 |
| 10 | I | 155 °C |  |
H05RR-F or H03RT-H | 0.75, 1.0 (b) | — | — |
| 10 | II | 70 °C |  |
H05VV-F | 0.75, 1.0 (b) | SVT or SJT | 18 |
| 16 | I | 70 °C |  |
H05VV-F | 1.0, 1.5 (b) | SJT | 16, 14, 12 |
| 16 | I | 70 °C |  |
H05VV-F | 1.0, 1.5 (b) | SJT | 16, 14, 12 |
Applications / Markets for Plug Connectors, Plug Receptacles, IEC Connectors
Plug connectors, plug receptacles, IEC connectors, AC inlets, AC outlets, and jumper cords from Volex are used in a wide variety of applications and markets. Examples include:
Business and IT Peripherals
- Desktops
- Monitors
- Laptops and Notebooks
- Point of Sale Systems
- Printers
- Tablets
Consumer Electronics
- Game Consoles
- Projectors
- Sound Systems
- Televisions
DIY and other Equipment and Appliances
- Extension Cords
- Power Tools
- Pressure Washers
- Replacement Power Cords
- Sewing Machines
- Water and Air Pumps
Domestic Appliances
- Air Conditioners
- Dryers
- Microwave Ovens
- Refrigerators and Freezers
- Steam Irons
- Vacuum Cleaners
- Washing Machines
Healthcare
- Clinical Diagnostics
- Imaging
- Medical Therapy Systems
- Patient Care Systems
- Patient Monitoring
- Surgical Systems
Personal Care
- Hair Curlers and Dryers
- Massagers
Plug Connectors, Plug Receptacles, IEC Connectors
Features Include
- World-wide range of safety approvals with combo options for applicable plug connectors and receptacles
- Straight and angled connectors and plug connectors
- PVC or halogen-free over mould
- Standard or V-Lock (locking) connectors and plug connectors
- Standard or short profile connectors and plug connectors
Why Choose Volex for Plug Connectors, Plug Receptacles, IEC Connectors?
- Volex customers of plug connectors, plug receptacles, IEC connectors benefit from strong technical expertise and global manufacturing and delivery.
- The Volex global factory footprint, which includes tariff-free manufacturing sites, an efficient global supply chain, and logistics support, enables reduced product lead times and efficient cost management.
- Volex engineering teams can customise plug connectors, plug receptacles, and IEC connector solutions to a customer’s specific requirements and provide quick-turn custom design samples supported by skilled local sales and field applications engineering (FAE) teams.
- Dynamic design and development capabilities support Volex’s diverse product portfolios. Rigid reliability tests, and 100% electrical tests, ensure total product performance. Volex always strives to fulfil customer expectations in the best way possible.
